RGB-RTI SERIES
OUTDOOR AND INDOOR RENTAL LED display
Outdoor and indoor rental LED display
Indoor module: P2.6, P2.976, P3.91, P4.81
Outdoor module: P2.976, P3.91, P4.81

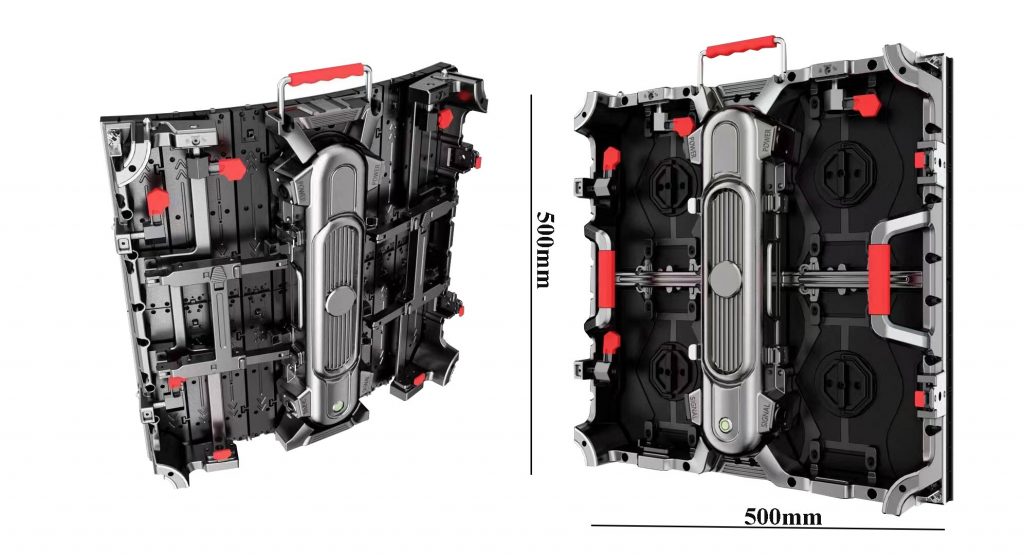

Standard size: 500x500mm/500x1000mm
Modular design. Disassemble quickly for replacement and Front maintenance.
100% front maintenance. Adopts customized design control box with quick removable without tools. The control box (includes power supply and receiving cards)
Ultra light weight Rental LED display
500x500mm: 7KG
500x1000mm: 14KG
thickness only 80mm.
RGB-RTI SERIES with light weight, one man can carry, easy assemble, save labor cost
90 degree right angel LED cabinet
cabinet are 45 degree bevel edge， not only can do straight line but also can do right angel. RGB-RTI SERIES LED display is a Multifunctional rental display
Unique design rental Cabinet , more flatness，seamless splicing
Model | ||||
Pixel Pitch(mm) | P2.604 | P2.976 | P3.91 | P4.81 |
Resolution | 96×96 | 168X168 | 128X128 | 104X104 |
Module size | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
Cabinet Dimensions(mm) | 500x500mm 500x1000mm | 500x500mm 500x1000mm | 500x500mm 500x1000mm | 500x500mm 500x1000mm |
Overall Dimensions(mm) | 500x500x80mm | 500x500x80mm | 500x500x80mm | 500x500x80mm |
Weight(kg) | 7/12 | 7/12 | 7/12 | 7/12 |
Brightness(nits) | 5000 | 5000 | 5000 | 5000 |
Scan | 24s | 21s | 16s | 13s |
Color Temperature | 2500k~10000k | 2500k~10000k | 2500k~10000k | 2500k~10000k |
Viewing Angle(H./V.) | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
Gray Scale(Bit) | 16 | 16 | 16 | 16 |
Fresh rate(Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
Working Voltage | AC:100V~240V | AC:100V~240V | AC:100V~240V | AC:100V~240V |
Power Consumption Max(W) | 640 | 640 | 640 | 640 |
Power Consumption AVG(W) | 240 | 240 | 218 | 240 |
Operating Temp | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ |
Maintenance way | Front/back | Front/back | Front/back | Front/back |
