RGB-CR SERIES INDOOR CRETITIVED LED

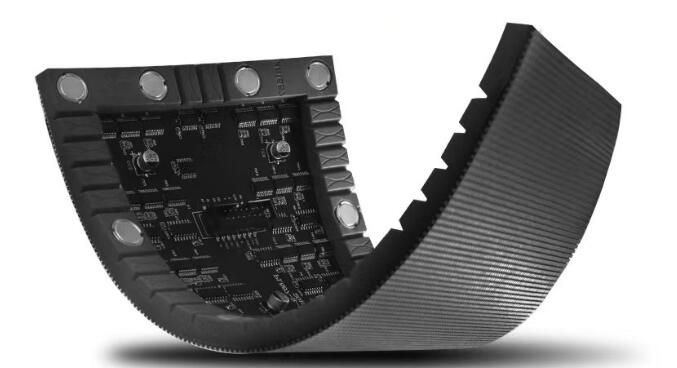

Creative Flexible LED module

Adopt sepcial design circuit layout PCB multiayer process design, the bending angle more than 135 degree.

Large angle, No Warping, Good Flexibility, No Degumming

Module插图3
Module插图4

Reliable High-quality Product

Composed of layers of quality raw materials, the flexible led module uses highly fireproof PCBs and soft bottom housing, thoroughly ensuring its reliability

Easy to Assemble

Strong Magnetic installation, Adjustable Flatness, Meet Varies of designs Suitable for cylinder LED screen, Wave LED screen,Ribbon LED screen and different shapes Flexible LED screen

Module插图5

Specifications

Module插图6

Model



Pixel Pitch(mm)

P1.25

P1.538

P1.86

P2

P2.5

Resolution

256×128

208×104

172×86

160×80

128×64

Module Dimensions

320x160mm

320x160mm

320x160mm

320x160mm

320x160mm

Scan

64s

52s

43s

40s

32s

Brightness(nits)

600

    600

800

600

800

Color Temperature

2500k~10000k

2500k~10000k

2500k~10000k

2500k~10000k

2500k~10000k

Viewing Angle(H./V.)

140°/140°

140°/140°

140°/140°

140°/140°

140°/140°

Gray Scale(Bit)

16

16

16

16

16

Fresh rate(Hz)

1920-3840

1920-3840

1920-3840

1920-3840

1920-3840

Working Voltage

AC:100V~240V

50/60HZ

AC:100V~240V

50/60HZ

AC:100V~240V

50/60HZ

AC:100V~240V

50/60HZ

AC:100V~240V

50/60HZ

 Operating Temp(℃)

-10℃~+50℃

-10℃~+50℃

-10℃~+50℃

-10℃~+50℃

-10℃~+50℃
