RGB-Dancing Floor SERIES
INDOOR & OUTDOOR
LED ADVERTISING KIOSK
Lightweight, slim and
streamlined design.
The design is streamlined to ensure a high-quality display with a lighter weight, slimmer cabinet and thinner bezels.
Powerful protection & Standing-free display
The screen supports lying on floor and standing-free, it protects the screen surface from water, dust, bumps, and static electricity.
Cloud connection, wireless control.
Users can use a variety of terminal devices such as PCs, mobile phones and PADs to uniformly control multiple V-Sight advertising kiosks through a wireless network for programme delivery, screen control and other operations.
Blending into one, more than just display.
With built-in speakers, the V-Sight advertising kiosk requires no external audio equipment and has multiple types of signal ports to meet different application scenarios.
GRAVITY BEARING 3000KG/SQM & Full Front Maintenance

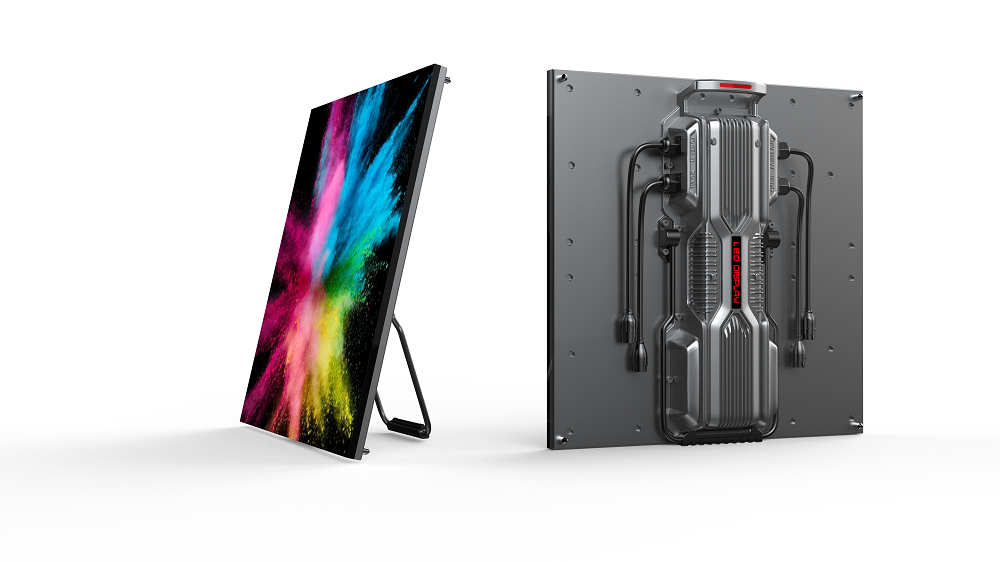

A front maintenance die-cast aluminium cabinet allows the V-Sight to have a high level of flatness while making installation and maintenance quick and easy.
|
Pixel Pitch |
2.97mm |
3.91mm |
6.25mm |
|||
|
LED Configuration |
SMD 1415 |
SMD 1921 |
SMD 1921 |
|||
|
Pixel Density |
112896dot/m2 |
65536dot/m2 |
25600dot/m2 |
|||
|
Module Size |
250X250mm |
|||||
|
Module Resolution |
84X84dot |
64X64dot |
40X40dot |
|||
|
Cabinet Size |
500X500X77mm/500X1000X77mm |
|||||
|
Cabinet Resolution |
168X168dot |
168X336dot |
128X128dot |
128X256dot |
80X80dot |
80X160dot |
|
Cabinet Weight |
11.5kg |
22.5kg |
11.5kg |
22.5kg |
11.5kg |
22.5kg |
|
Load Bearing |
1.5-3.0t/m/² |
|||||
|
P Rating ( front/back) |
IP43 / IP54 |
|||||
|
Environment |
INDOOR & OUTDOOR |
|||||
|
Brightness |
1000-2300CD/m2 |
1000-2500CD/m2 | 1000-2300CD/m2 |
|||
|
Mask |
Brown / creamy (Brightness difference) |
|||||
|
Viewing Angle (H/V) |
120°/120° |
|||||
|
Gray Scale |
≥14bit |
|||||
|
Max.Power Consumption |
480W/m² |
|||||
|
Ave.Power Consumption |
160W/m² |
|||||
|
Refresh Rate |
3840Hz |
|||||
|
Operation Power |
AC110~ 240V, 50/60Hz |
|||||
|
Scan grade |
1/28S |
1/16S |
1/10S |
|||
|
Interactive |
○ / ● |
|||||
|
Control Mode |
Synchronous display with control PC by DVI |
|||||
|
Support Input |
Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI |
|||||
|
Operating Temperature |
0°C~40°C(work) , – 20°C~60°C(store) |
|||||
|
Operating Humidity |
35%~85% (work) , 10%~90% (store) |
|||||
|
Operating Life |
≥100,000hours |
|||||
|
Cabinet Material |
Aluminum profiles/Iron profiles |
|||||
|
Installation |
Rail Installation/Adjustable foot installation |
|||||
|
Packaging |
Flight Case |
|||||
|
Certificate |
无 |
|||||
