RGB-GOB SHELF SERIES
INDOOR SHELF LED SCREEN

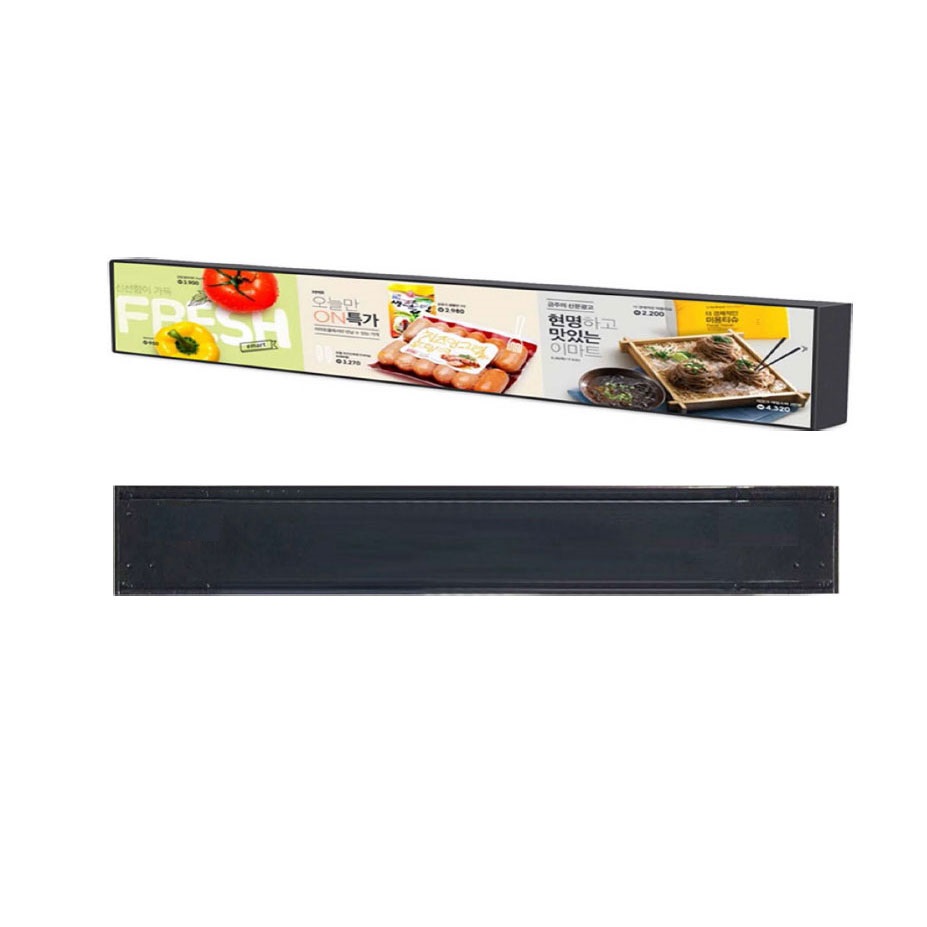

Shelf led display
Super slim in depth and light in weight
22mm thickness ,thickest in the whole market, easy to install and move
Plug-in display, simple operation
LAN integrated publish & remote publish via internet
Aluminum alloy frame
Made of 1 pieces straight long frame(connected to aluminum plate at side) Perfect flatness in display
Light weight, easy for assemble
GOB Technology on Modules
Better protection against touching ,hitting and water spray
Front: IP68
Dust proof, waterproof, moisture-proof, and corrosion-resistant
Convenient installation
1. Attached screen by screwsing M6X14 screws；
2. Attached screen with fold plate by M3X6 screws；
3. Attached screen to gondola with another side of fold plate by drilling screws
Multiple control methods
Shelf LED Display control Via Control Box
Shelf LED Display support Router Application
Shelf LED Display played via CLOUD
Model | ||||
Pixel Pitch(mm) | P0.9375 | P1.2 | P1.5 | P1.875 |
Module | GOB | GOB | GOB | GOB |
Module Resolution | 160×60 | 120×45 | 100×40 | 80×32 |
Module size(mm) | 150×56.25 | 150×60 | 150×60 | 150×60 |
Cabinet Size(WxH mm) | 300×56.25/1200×56.25 | 300×60/1200×60 | 300×60/1200×60 | 300×60/1200×60 |
Option cabinet size(WxH mm) | 600×56.25/900×56.25 | 600×60/900×60 | 600×60/900×60 | 600×60/900×60 |
Brightness(nits) | 600 | 800 | 800 | 800 |
Scan | 46s | 45s | 48s | 45s |
Color Temperature | 2500k~10000k | 2500k~10000k | 2500k~10000k | 2500k~10000k |
Viewing Angle(H./V.) | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
Gray Scale(Bit) | 16 | 16 | 16 | 16 |
Fresh rate(Hz) | 3840 | 3840 | 3840 | 3840 |
Working Voltage | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ |
Power Consumption Max(W) | 280 | 280 | 280 | 280 |
Power Consumption AVG(W) | 100 | 100 | 100 | 100 |
Operating Temp(℃) | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ |
