indoor LED display

Pixel pitch

Indoor P0.9 LED display

Indoor P1.25 LED display

Indoor P1.56 LED display

Indoor P1.875 LED display

Indoor P2.5 LED display

Function:

Cabinet size: 600×337.5mm

Module size: 300×168.75mm.

ultra thin LED display, thickness 35mm, super light weight cabinet, each cabinet only 4.8KG

Front maintenance LED display, super fast installation and quick maintenance

Seamless splicing with 16:9 golden ratio,no gap between cabinet easy make 2K, 4K,8K perfect video effect

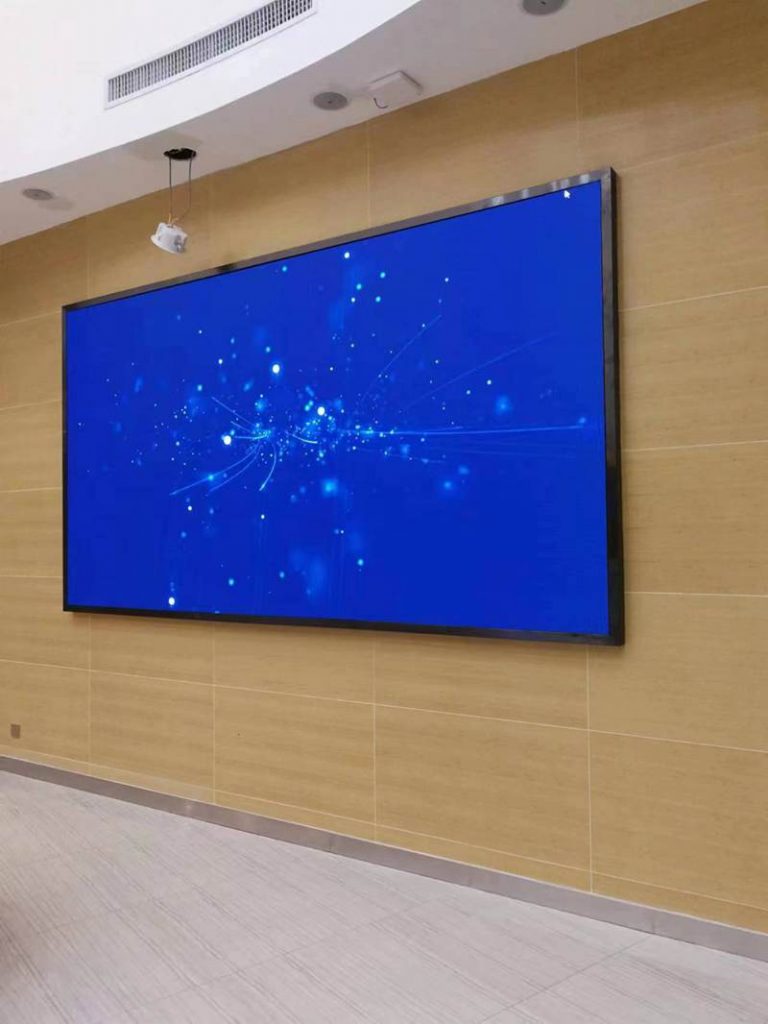

indoor led display插图
Indoor LED display



Front service design

All accessory front service. Flexible installation and maintenance methods

Module front maintenance, receiving card front maintenance, hub card front maintenance, power supply front maintenance too

indoor led display插图1

Application

church LED display, shopping mall LED display, TV station LED display, Studio LED display, meeting room LED display,



indoor led display插图2

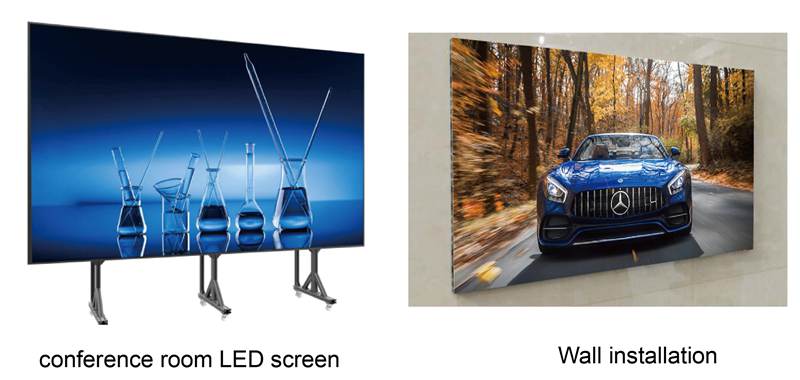

Flexible installation methods

Hanging LED DISPLAY, Wall mounted LED display, stack LED display, conference room LED display, Totem LED display   indoor led display插图3

Specification

Model
Pixel Pitch(mm) P0.9 P1.25 P1.56 P1.875 P2.5
Module Resolution 320*180 240*135 192*108 160*90 120×67.5
Module size(mm) 300*168.75 300*168.75 300*168.75 300*168.75 300*168.75
Cabinet Dimensions 600*337.5mm 600*337.5mm 600*337.5mm 600*337.5mm 600*337.5mm
Weight(kg/cabinet) 4.8 4.8 4.8 4.8 4.8
Brightness(nits) 600 600 800 800 1000
Scan 46s 45s 48s 45s 30s
Color Temperature 2500k~10000k 2500k~10000k 2500k~10000k 2500k~10000k 2500k~10000k
Viewing Angle(H./V.) 160°/160° 160°/160° 160°/160° 160°/160° 160°/160°
Gray Scale(Bit) 16 16 16 16 16
Fresh rate(Hz) 3840 3840 3840 3840 3840
Working Voltage AC:100V~240V AC:100V~240V AC:100V~240V AC:100V~240V AC:100V~240V
Power Consumption Max(W) 350 350 350 350 350
Power Consumption AVG(W) 100 100 100 100 100
Operating Temp(℃) -10℃~+50℃ -10℃~+50℃ -10℃~+50℃ -10℃~+50℃ -10℃~+50℃



LED display COB shelf LED display Ultra high definition LED display screen
